The User Registration Fields page decides what the public self-registration form asks a new user or staff member for. It does two separate jobs, and it is worth being clear about which one you need before you start:

• Required Fields, Selectable Fields, Checkbox Fields and Optional Fields switch the product’s own, built-in fields on and off (first name, company, photo, cost center, and so on). You cannot rename them and you cannot invent new ones here.
• Custom Fields is a small form builder for your own extra questions. Anything the built-in fields do not cover - a shift pattern, an emergency contact, a photo of a signed induction certificate - is added here and appears on the public form underneath the built-in fields.

Readers often confuse the two. The rule of thumb: if the information you want already has a name in the list of built-in fields, tick its checkbox. If it does not, add a custom field.

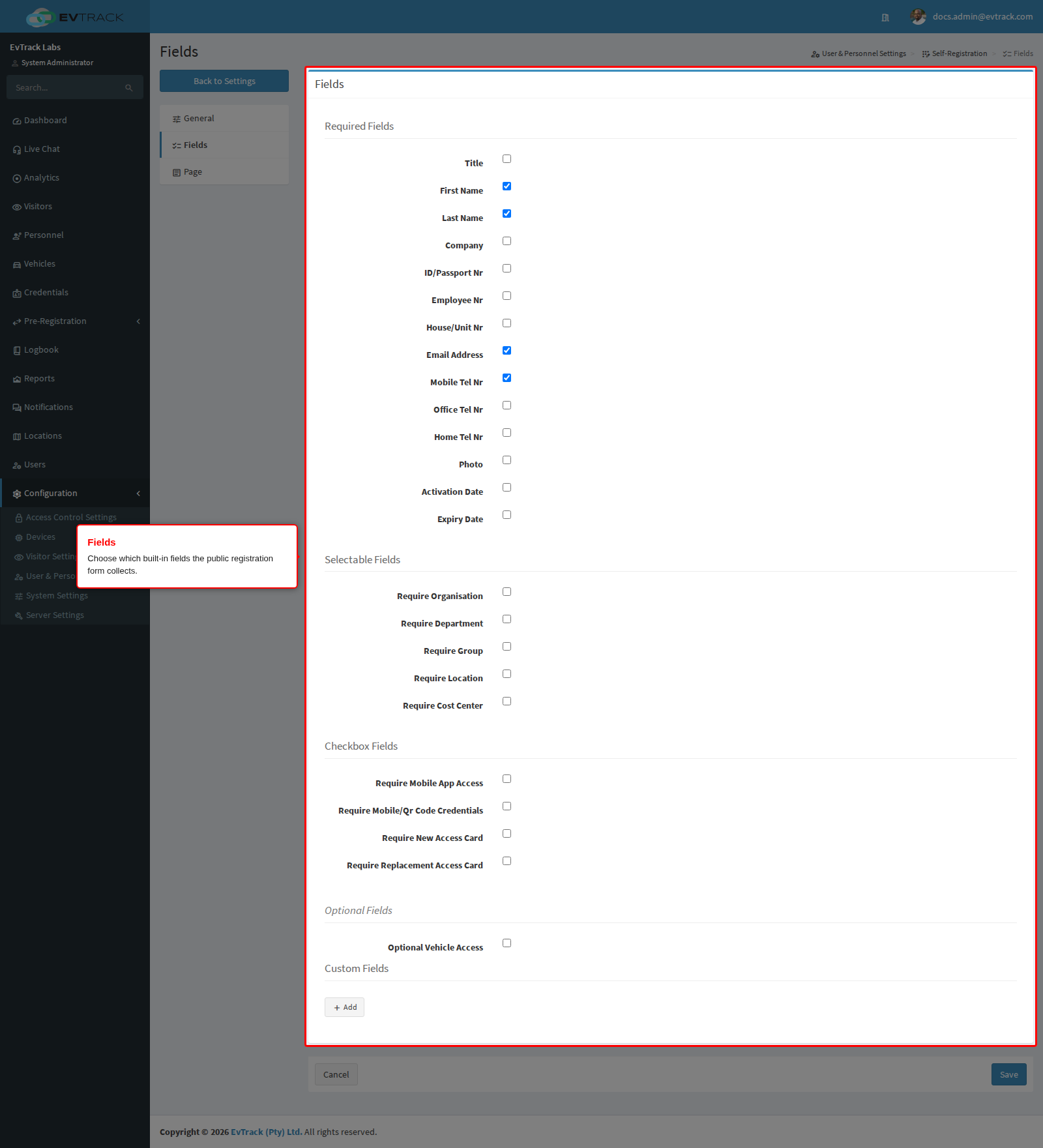

Open the page via Configuration > User & Personnel Settings > Self-Registration, then the Fields tab in the left-hand list.

Before you start

• You need permission to edit settings. If the Configuration menu is missing, ask an administrator to grant your role the settings-editing permission.
• The public form must be switched on before anyone can use it. That switch, and the link and QR code you share, live on the General tab: see User Registration.
• Everything on this page is system-wide. There is no per-user variation of the self-registration form.

Built-in fields

Required Fields - tick a checkbox to make that personal detail mandatory on the registration form:

• Title - requires the registrant to supply a title (Mr, Ms, Dr, and so on).
• First Name - requires the registrant’s first name.
• Last Name - requires the registrant’s last name.
• Company - requires a company name; useful when contractors and service providers register through the same form.
• ID/Passport Nr - requires a national ID or passport number for positive identification.
• Employee Nr - requires an employee number; enable it when registrations must map to payroll or HR records.
• Show Date of Birth (optional) - adds an optional date of birth field to the form. It is never required. The date is stored encrypted, copied to the user account when the registration is approved, and used only by duplicate checks that compare name and date of birth.
• House/Unit Nr - requires a house or unit number; typically used in residential estates.
• Email Address - requires an email address so the system can reach the person after registration.
• Mobile Tel Nr - requires a mobile telephone number.
• Office Tel Nr - requires an office telephone number.
• Home Tel Nr - requires a home telephone number.
• Photo - requires the registrant to upload a photo, for badge printing and visual verification at the checkpoint.
• Require Copy of ID Field - shows a Copy of ID upload on the form, and the registrant must upload it. It takes one identity document of up to 10 pages: photos of the pages, a PDF or a Word (.docx) document, which the registrant’s phone or computer turns into page images. The document lands on the new record’s Documents tab when the registration is approved, as one row labelled “Copy of ID” with its number of pages.
• Activation Date - requires a date from which the registration becomes active.
• Expiry Date - requires a date on which the registration expires; enable it when access must always be time-limited.

Selectable Fields - each toggle adds a mandatory dropdown to the form:

• Require Organisation - the registrant must pick an organisation.
• Require Department - the registrant must pick a department.
• Require Group - the registrant must pick a group.
• Require Location - the registrant must pick a location.
• Require Cost Center - the registrant must pick a cost center, so the registration can be attributed for billing or reporting.

Checkbox Fields - each toggle adds a request checkbox to the form:

• Require Mobile App Access - lets the registrant request access to the mobile app.
• Require Mobile/Qr Code Credentials - lets the registrant request a mobile or QR code credential.
• Require New Access Card - lets the registrant request a new physical access card.
• Require Replacement Access Card - lets the registrant request a replacement for a lost or damaged access card.

Optional Fields:

• Optional Vehicle Access - adds an optional section where the registrant can request vehicle access and capture their vehicle details. Vehicle details such as the license plate number are only required if the registrant ticks the vehicle-access request.

Click Save to apply your changes, or Cancel to discard them.

Custom fields

Custom fields are your own questions. You give each one a type, a label and a required flag; the form builder keeps them in a list, and everything in that list is rendered on the public form in the order shown.

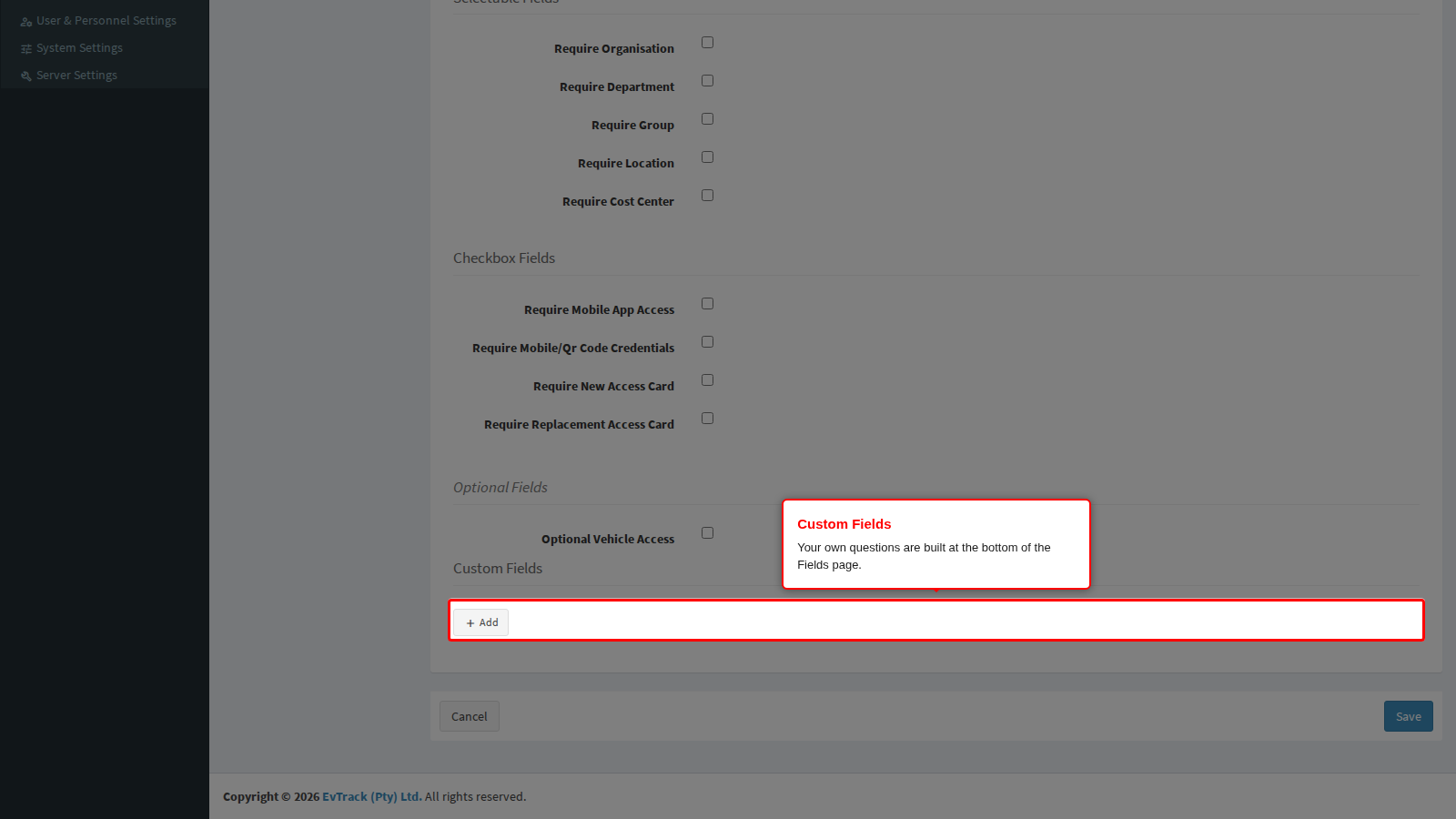

The builder sits at the very bottom of the Fields tab, under the Custom Fields heading. On a system that has never used custom fields it is just an Add button.

Step 1: Add a question

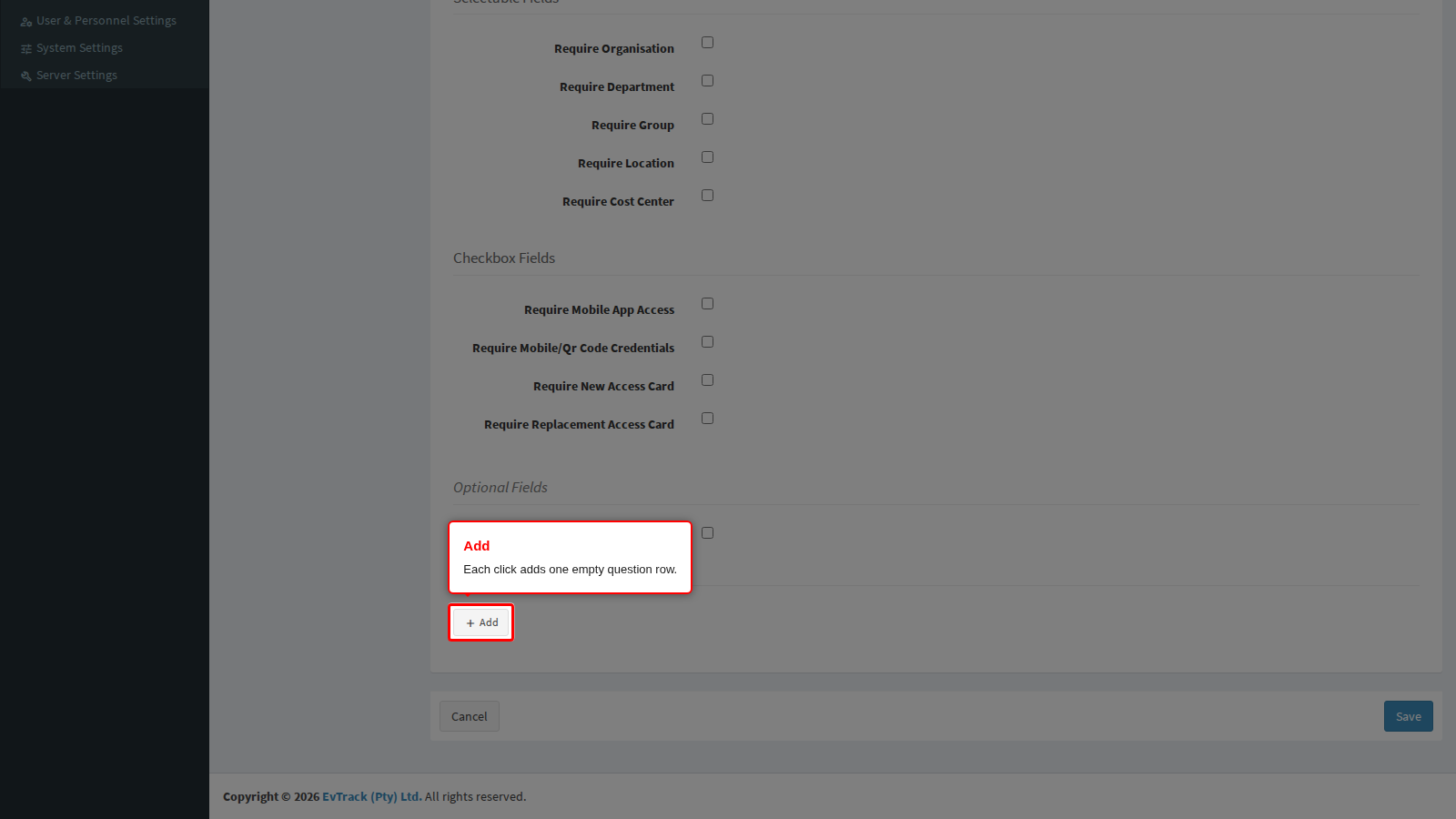

Scroll to Custom Fields and click Add.

End state: an empty question row appears, with a Type list, a Custom Field Label box, an Is Field Always Required? tick box and a row of small buttons on the right.

Step 2: Choose the question type

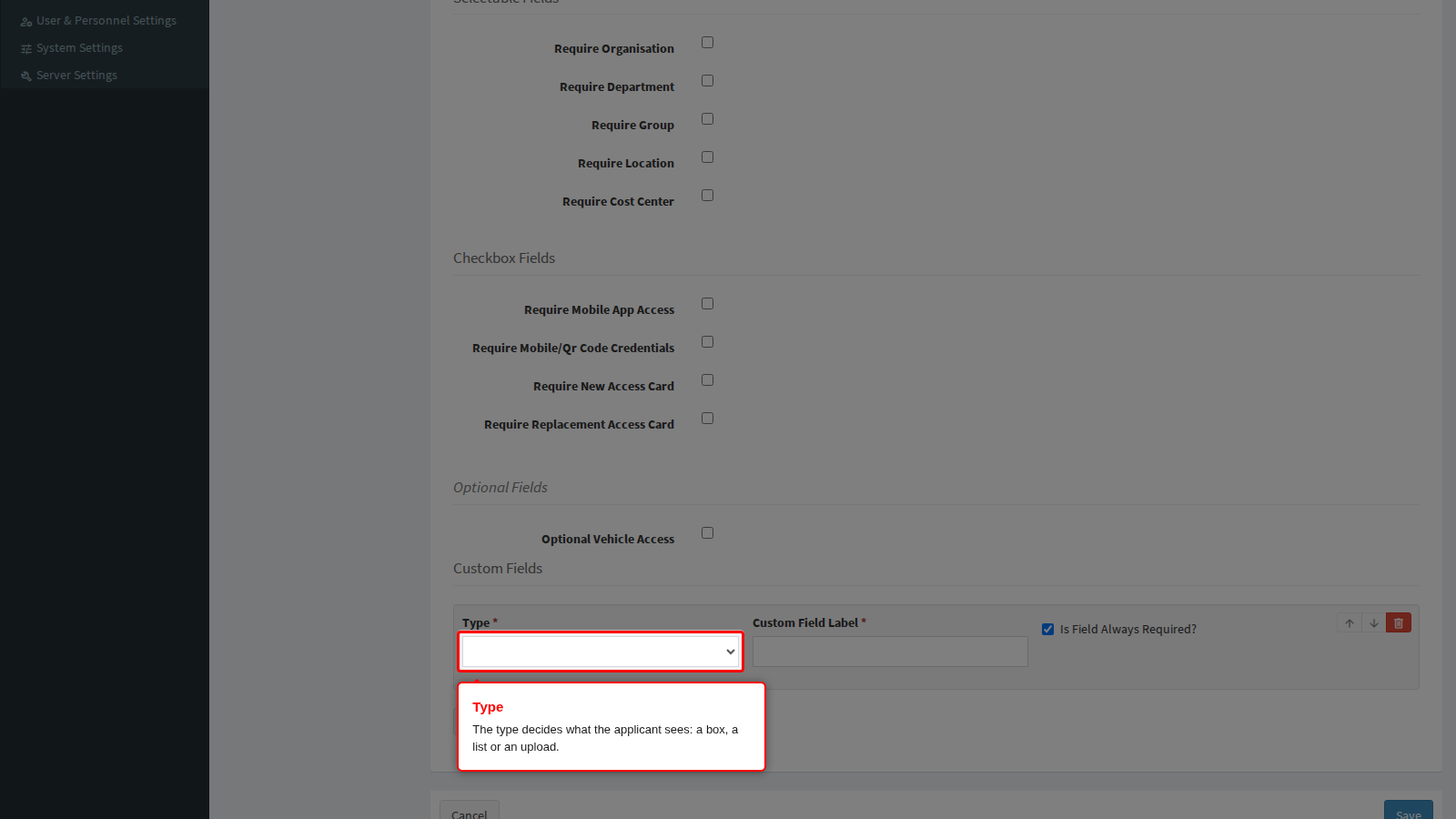

Open the Type list and pick what you want to collect. The type decides what the applicant actually sees on the form.

The types offered on this page are:

Type	What the applicant sees	Use it for
Text Field	A single-line box	Short free text: an emergency contact, a supervisor’s name, a locker number
Number	A box that accepts numbers only	Counts, reference numbers, quantities
Photo	An upload panel that takes one JPEG or PNG picture	A second photo you need beyond the badge photo, for example a vehicle or a uniform
Document	An upload panel that takes one document of up to 50 pages: photos of the pages, a PDF or a Word (.docx) document	Certificates, signed declarations, proof of qualification
Drop Down	A list of values, one answer allowed	A single choice from a fixed set: shift pattern, contract type
Checkboxes	A list of values, several answers allowed. With no values, one tick box showing the label	Several choices from a fixed set: site inductions completed, equipment issued. Leave the values empty for a single statement to agree to, such as a consent; mark it required and it must be ticked
Text Area	A multi-line box	Longer free text: a description, a reason, notes

Always pick a type. A question saved with a label but no type is stored and then never rendered on the form, so nobody can answer it.

A Document question never receives the PDF or Word file itself: the applicant’s phone or computer turns each page into a picture and only those pictures are sent. A longer document opens a list of its pages so the applicant picks up to 50. A Photo question takes exactly one picture, never a PDF. See Upload File Formats. A question that was set up as File in an earlier version is a Document question.

End state: the row shows the chosen type, and for Drop Down and Checkboxes a Values list appears further down the row.

Step 3: Label the question and decide whether it is mandatory

Type the wording the applicant should read into Custom Field Label. This is the only text they see, so write it as a question or a clear instruction, for example “Emergency Contact Name”. Keep it short: on the public form the label of a text, number, text area or drop-down question is shown as the prompt inside the field itself rather than as a separate caption above it.

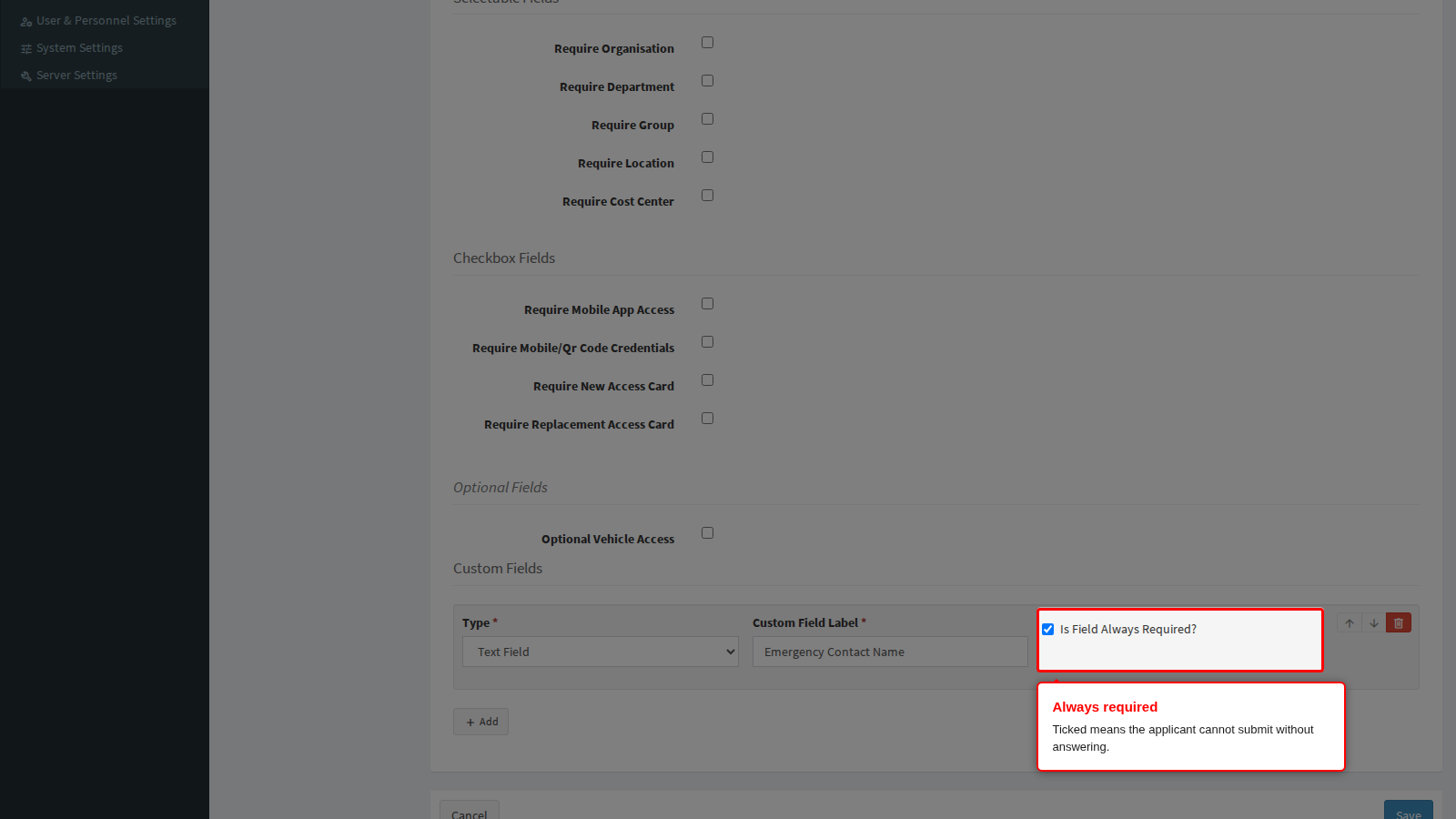

Is Field Always Required? is ticked by default. Leave it ticked to force an answer, or untick it to make the question optional. An applicant who leaves a required question empty sees “This field is required” under it and the form is not submitted. For a Checkboxes question, at least one box must be ticked; for a Photo or Document question, a file must be uploaded.

End state: the row reads as a finished question: type, label, and the required flag in the state you want.

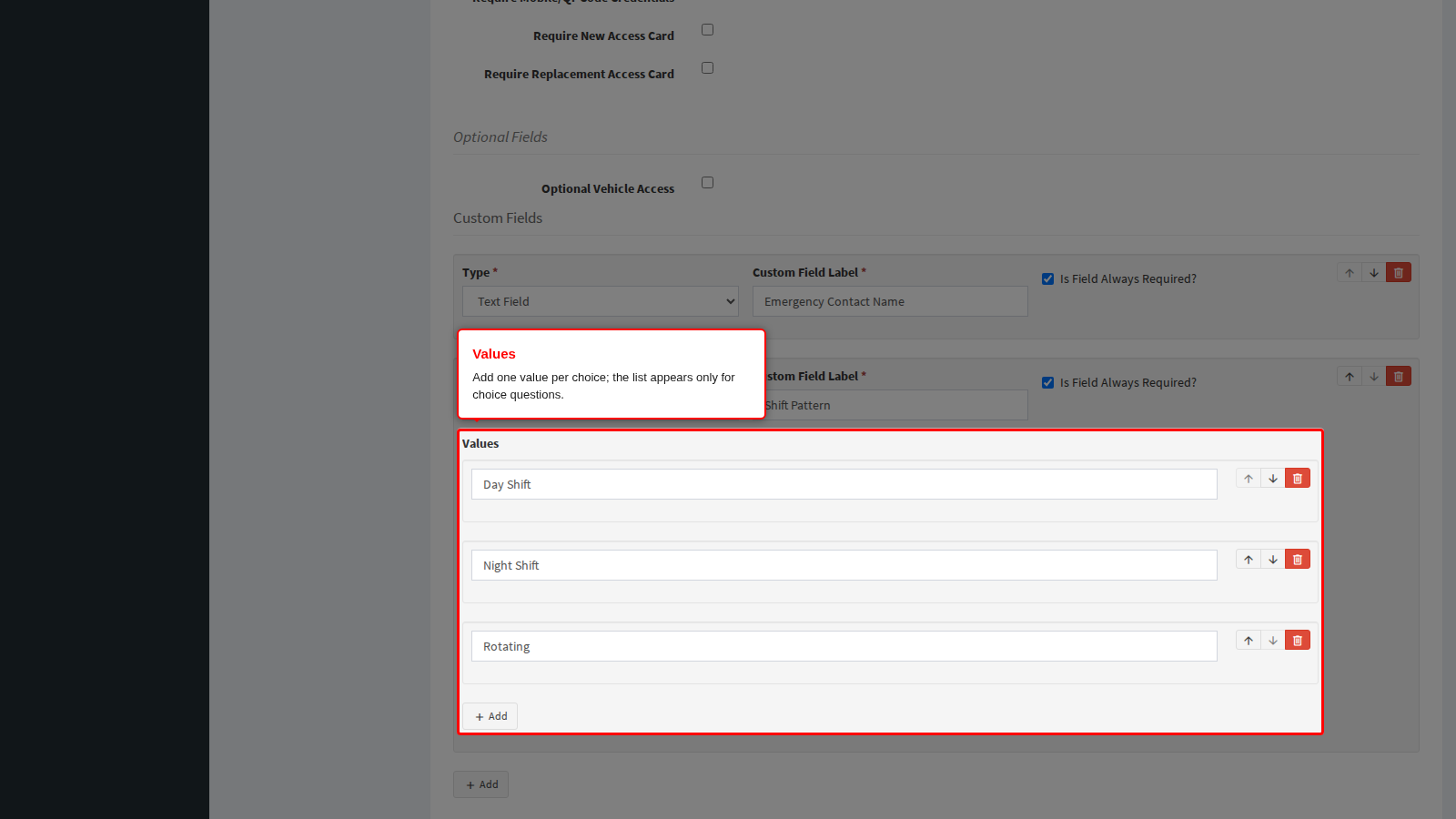

Step 4: Define the values of a choice question

Add a second question, set its type to Drop Down (or Checkboxes), and label it. A Values list appears. Click its Add button once per choice and type the choice into the box that appears.

• The values are shown to the applicant exactly as you type them, in the order listed.
• Blank value boxes are discarded when you save, so an accidental empty row is harmless.
• The Values list is hidden for every other type. If you change a question from Drop Down to Text Field, the list disappears.

End state: the choice question lists every value the applicant will be offered.

Step 5: Reorder or remove a question

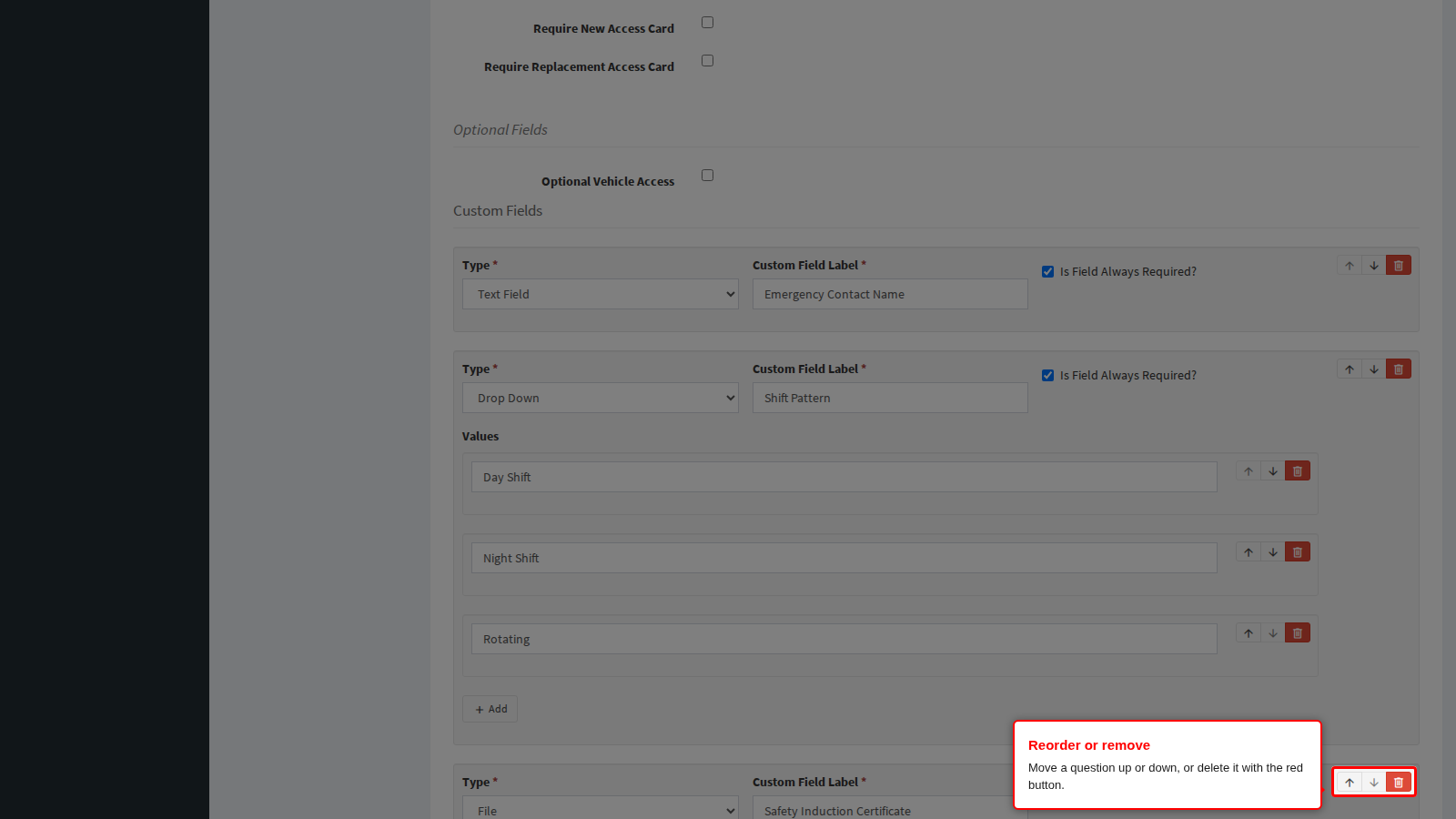

Every question row carries its own small buttons on the right:

• Move up and Move down change the order of the questions. The order in the builder is the order on the public form, so group related questions together.
• Remove (the red button) deletes the question from the list.

A question row that has no label at all is dropped when you save, which is the quickest way to abandon a row you started by mistake.

End state: the questions appear in the order applicants will answer them.

Step 6: Save

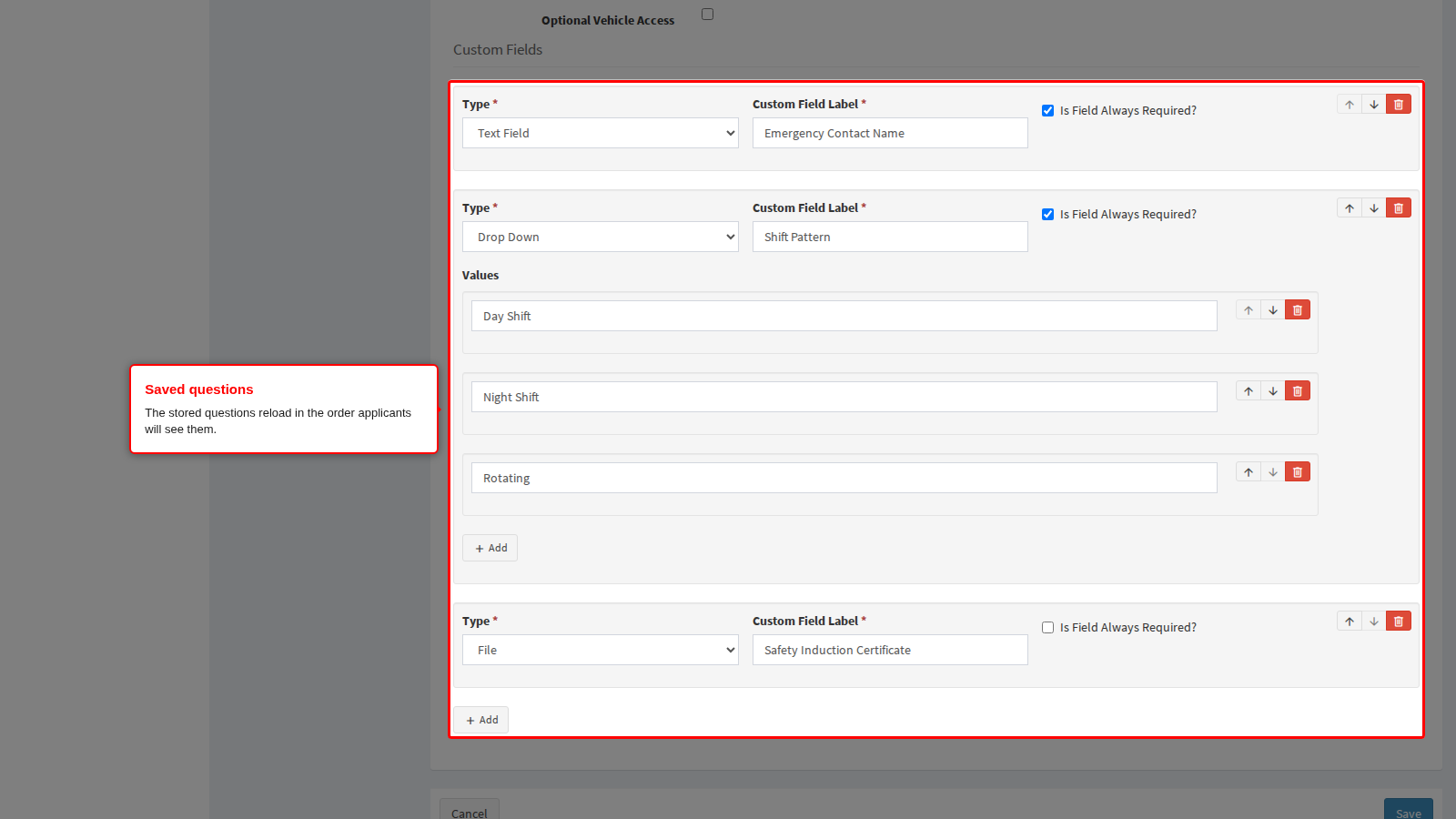

The builder has no save button of its own. Click Save at the bottom of the Fields page to store the built-in switches and the custom questions together. Reload the page to confirm: the saved questions come back in their stored order.

End state: a green confirmation is shown and the questions are live on the public registration form.

Removing a question does not delete answers already given. Requests submitted before the change keep the answers they were given; they simply stop being asked of new applicants.

What the applicant sees

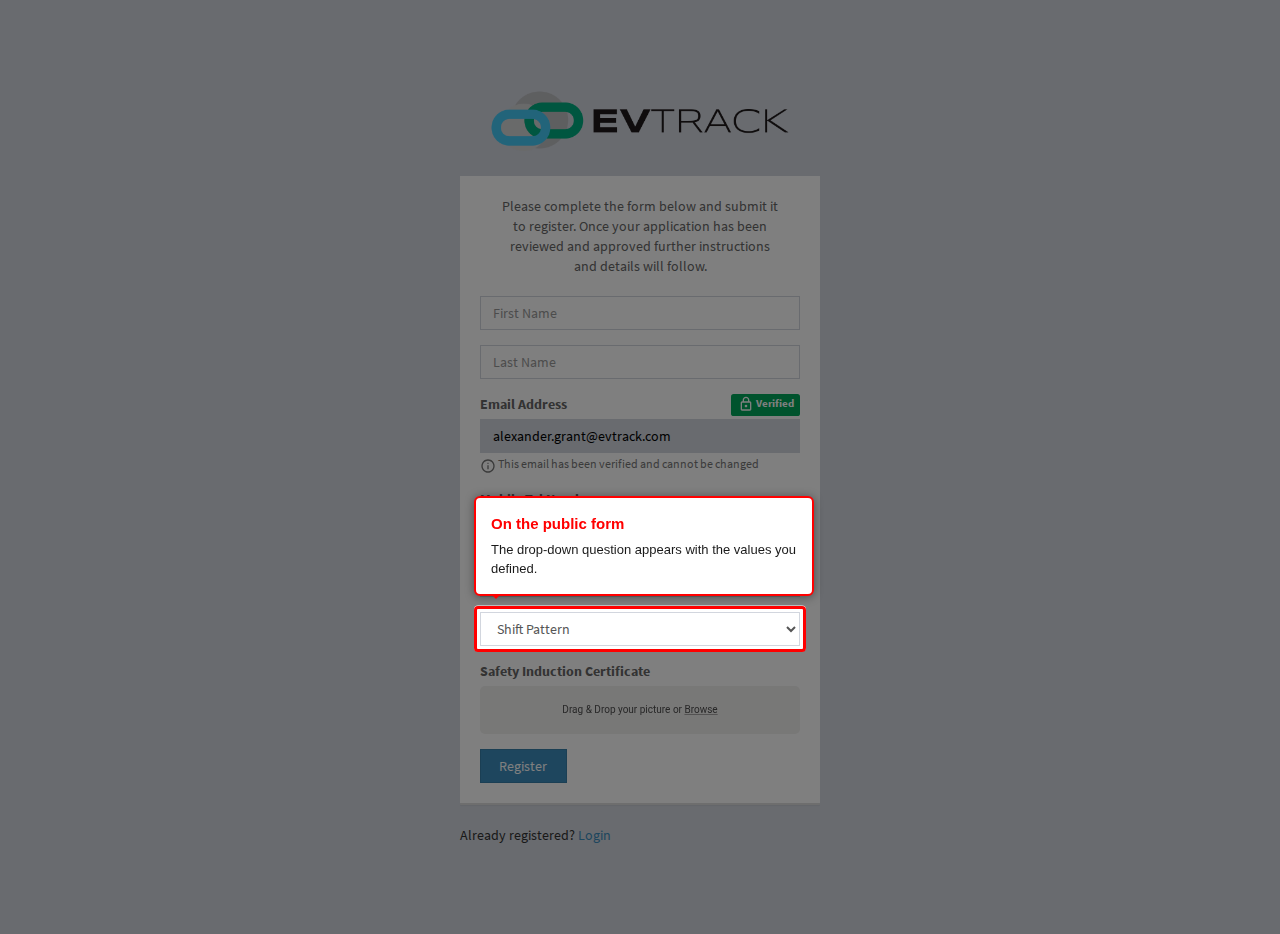

Custom questions are rendered on the public self-registration form below the built-in fields, in the order you defined. A required question is enforced before the form can be submitted; an optional one can be left blank.

Photo and Document questions are shown as upload panels. A Photo question takes one JPEG or PNG picture; a Document question takes up to 50 pages. The uploads are stored with the request and remain available to the administrator who processes it.

Where the answers appear

Submitted requests wait under Pre-Registration in the sidebar (there is one list for users and one for personnel).

1. Open the list and click the applicant’s name, company or email in the row. A summary opens showing everything they submitted, including every custom question and its answer. Photo and Document answers appear as documents with their pages; the Review page opens them in the document viewer (see User Self-Registration).
2. Click Add User (or Add Personnel) on the row to turn the request into a record. The add form opens pre-filled with the submitted details, and the text-style custom answers are appended to the new record’s Comments field (users) or Notes field (personnel), each on its own line as “label: answer”.
3. Answers to a Checkboxes question are appended as one line with the chosen values separated by semicolons.

Photo and file answers are deliberately not copied into that text. Open the summary in step 1 and download them before you finish processing the request if you need to keep them on file.

See Add a User and Add Personnel for the rest of the processing flow.

Notes

• Requests that have no dedicated field on the record - the vehicle license plate and the credential and app request checkboxes - are appended to the same Comments or Notes text as the custom answers. Read that text before issuing credentials so no requested item is missed.
• Custom questions are asked once, at registration. They are not re-asked when the person is later edited, and they are not part of the person’s ongoing profile.
• Visitors have their own, separate custom-field builder with a slightly different set of types. See Self-Registration for the visitor equivalent, and do not expect a question defined here to appear on a visitor form.
